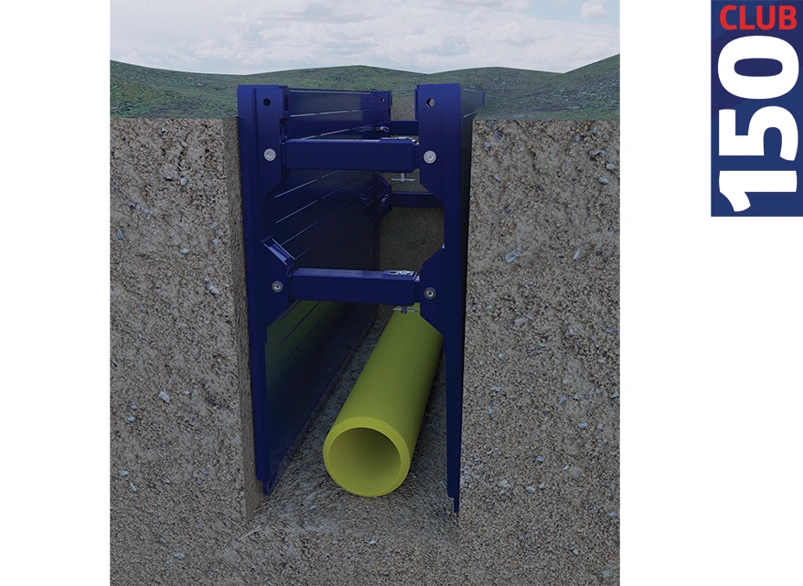

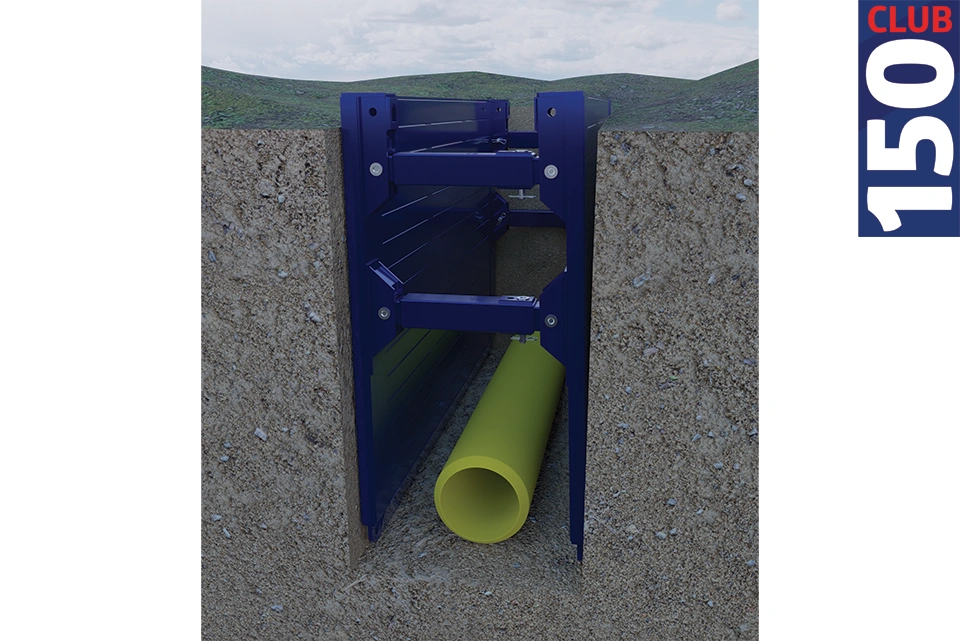

Standard Trench Box

TB102

Key Features

  • Working width from 620mm – 3190mm
  • Handrails & Ladder access available
  • Approx box weight 2200kg

GAP’s standard trench boxes are suitable for a large range of trench depths and widths.

CAN'T FIND WHAT YOU NEED?

Full Description

GAP’s standard trench boxes are suitable for a large range of trench depths and widths. Trench box tops are available to add extra height in a deeper trench. Pinned struts allow for easy adjustment.

The Standard Box can be used in trenches up to 5.5m deep in conjunction with up to two top extension units, subject to the maximum panel pressure not being exceeded.

  • Panel Height: 2520mm
  • Panel Length: 3520mm
  • Complete base box weight: 2110kg
  • Thickness of Panel: 100mm
  • Trench Width External (Min/Max): 800mm/3750mm
  • Trench Width Internal (Min/Max): 600mm/3550mm
  • Clearance between struts: 3220mm
  • Clearance Below Lower Strut: 1500mm
  • Max Depth Excavation : 5500mm
  • Hard Hat Required
  • Ear Protection Required
  • Safety Boots Required
  • Safety Gloves Required
  • Dust Mask Required
  • Heavy Load
  • Hi-Vis Vest Required
  • Overalls Required
  • Safety Goggles Required
